Build the right foundation for your 28-inch drop-in.

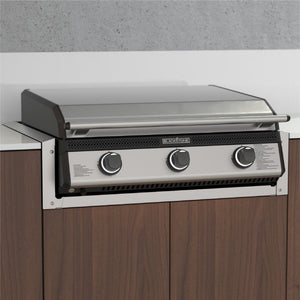

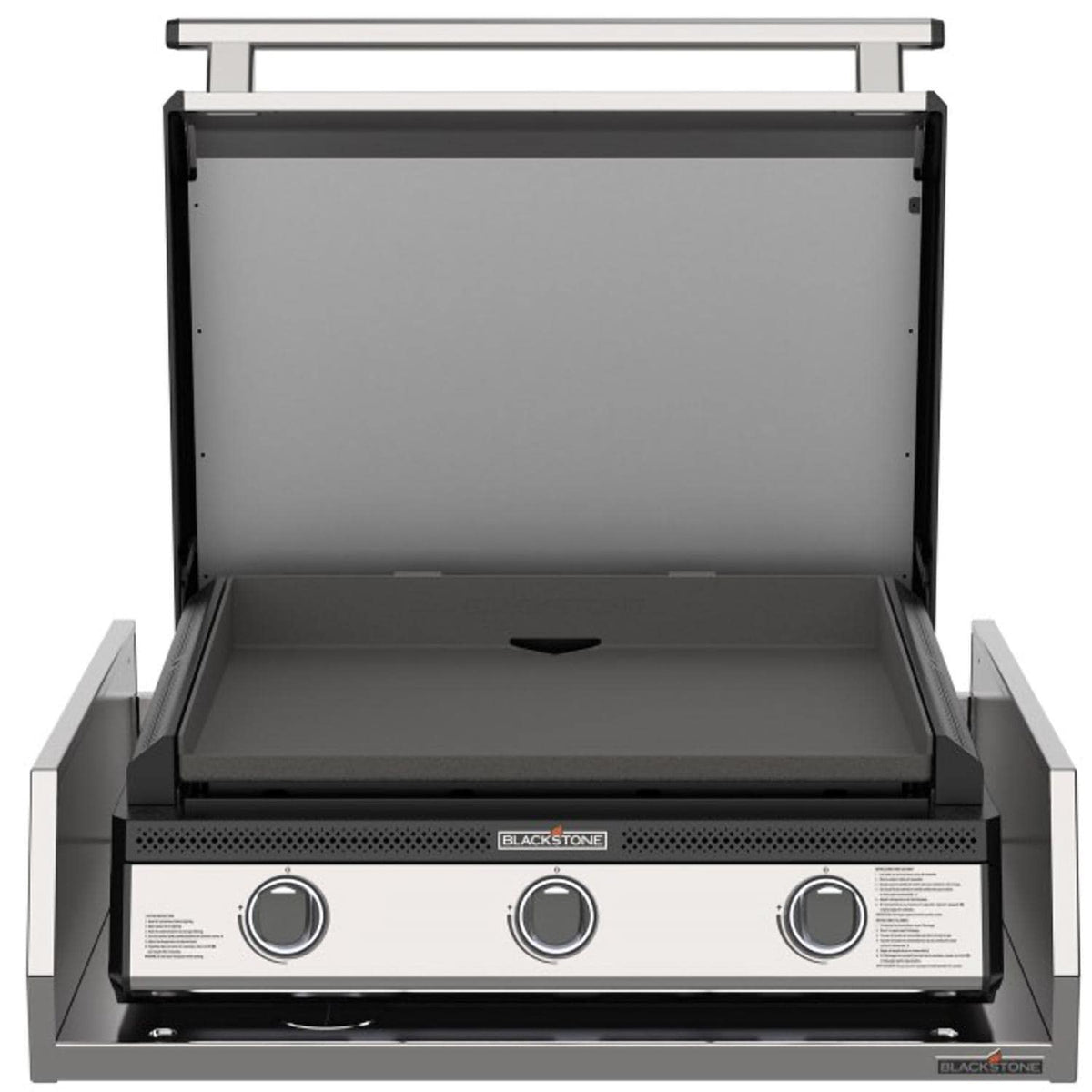

Plan your 28-inch drop-in griddle installation with its matching insulating jacket and countertop trim.
An installation component with a finished edge.

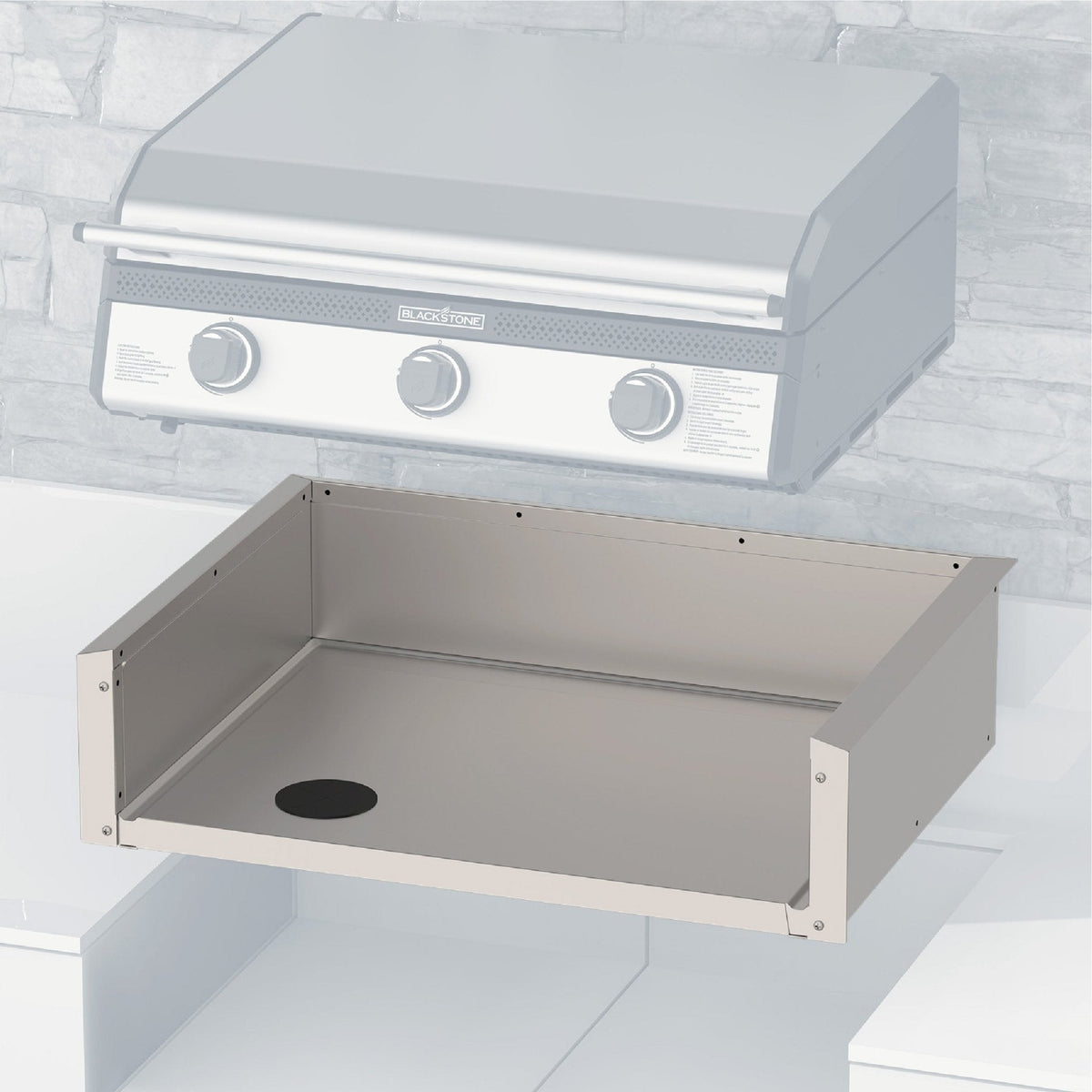

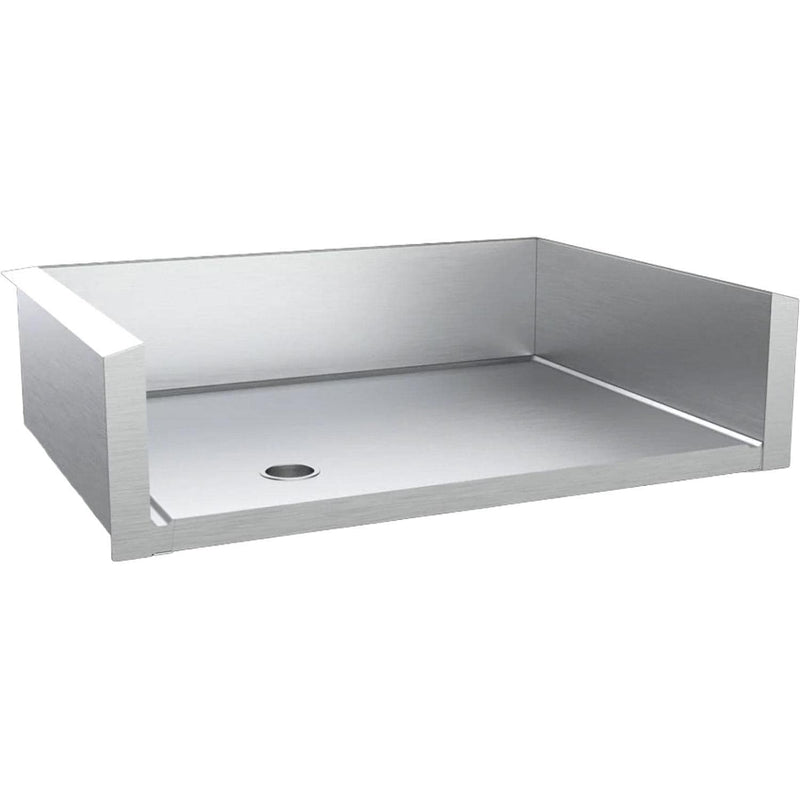

The 304 stainless steel jacket is designed for the compatible Blackstone 28-inch, three-burner drop-in griddle. Its countertop flange finishes the opening, while a drainage system and utility-routing port support the installation layout.
- Compatible with propane-ready and natural-gas-ready configurations
- Substructure support required
What It Comes With
Insulating jacket and countertop flange/trim kit. Griddle and enclosure are sold separately.
Plan Your Setup

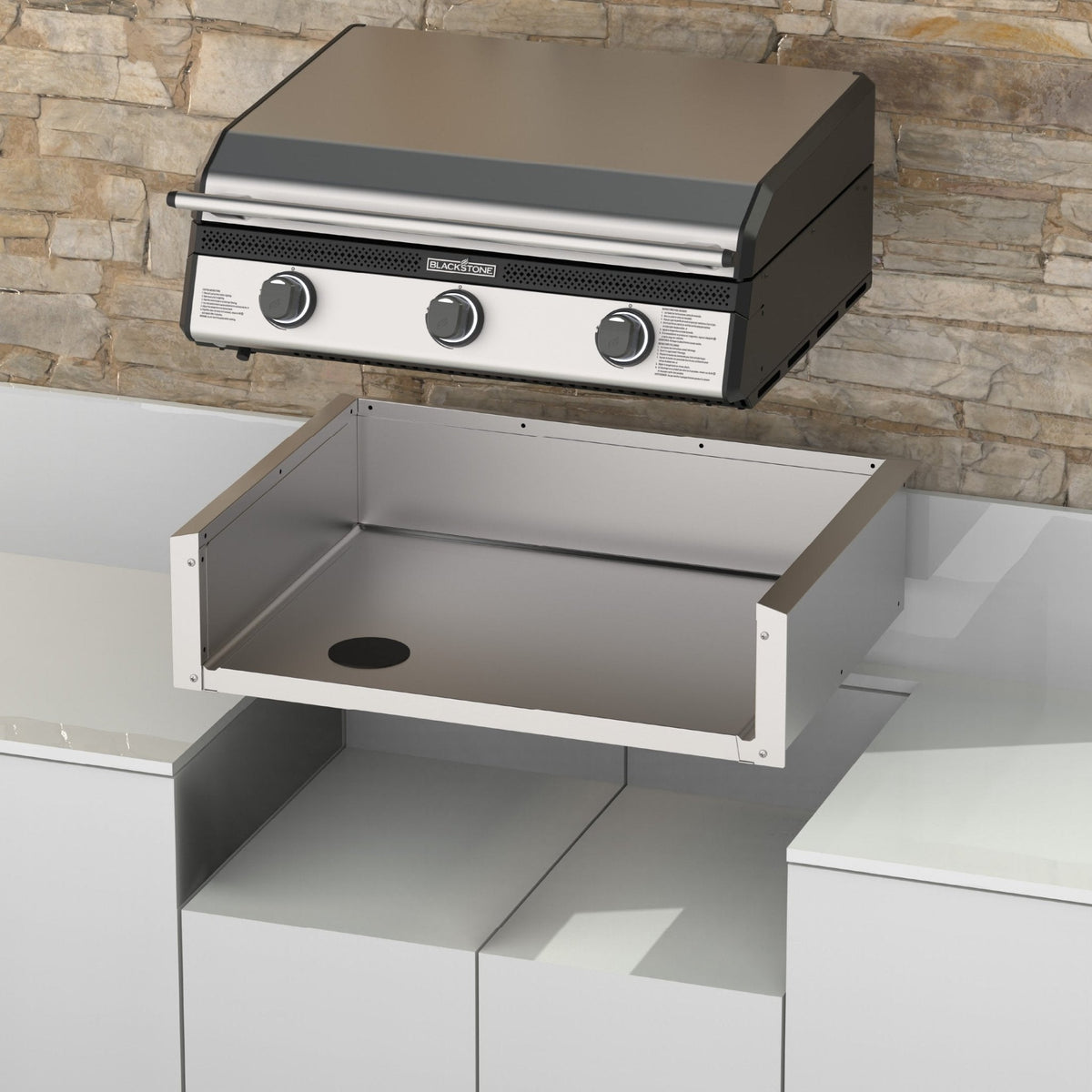

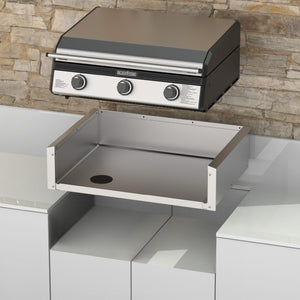

Use the exact jacket installation drawing, including the 35.4-inch width, 26.09-inch depth and 9.16-inch height references. The jacket requires supporting substructure; the flange alone is not a support system. Griddle and enclosure are sold separately.
Useful Before and After You Order
Warranty & coverage
Manufacturer warranty terms and exclusions apply. Contact Smokeforges for help confirming coverage for this model before purchase.
Manuals & documents
Finish Your Blackstone Setup
Add this Blackstone model to your setup when you are ready.
Specifications & Dimensions
| Model | 6228 |
|---|---|
| Brand | Blackstone |
| Minimum cavity width (A) | 35.4 in. |
| Minimum cavity depth (B) | 26.09 in. |
| Cavity height (C) | 9.16 in. |
| Jacket material | 304 stainless steel |
| Minimum utility-hole distance from side (D) | 9.39 in., measured as shown in the drawing. |
| Minimum utility-hole distance from front (E) | 5.05 in., measured as shown in the drawing. |
| Minimum utility-hole diameter (F) | 4.33 in. |
| Installation support | Supporting substructure is required; follow the griddle and jacket manuals. |
Opening-height limit: Blackstone lists 9.16 in. for height C and cautions that a greater height interferes with the hood. Follow the drawing and confirm the exact griddle/jacket combination before construction.
These are the jacket cavity dimensions, not the bare-griddle cutout. In the shared drawing, model 6228 uses the 28-inch width; model 6430 uses the 36-inch width.
Source: Blackstone 6228 / 6430 owner’s manual (PDF), page 4.
