Finish your 36-inch drop-in installation properly.

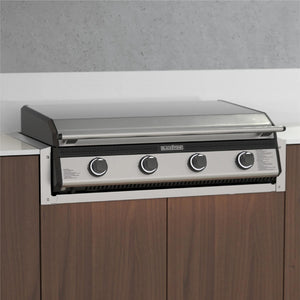

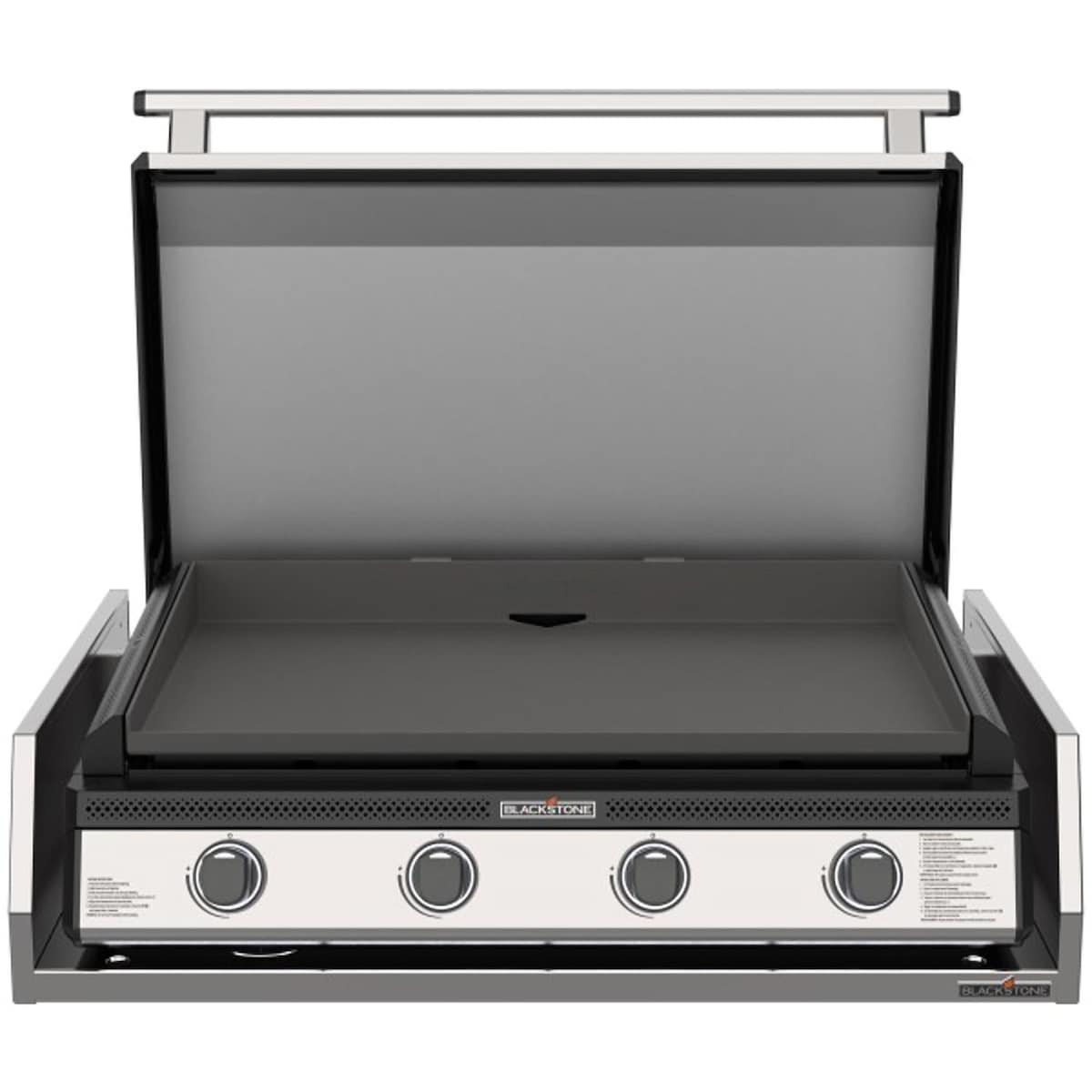

Complete a compatible 36-inch drop-in griddle installation with a stainless insulating jacket and trim.
Stainless construction around the cooking station.

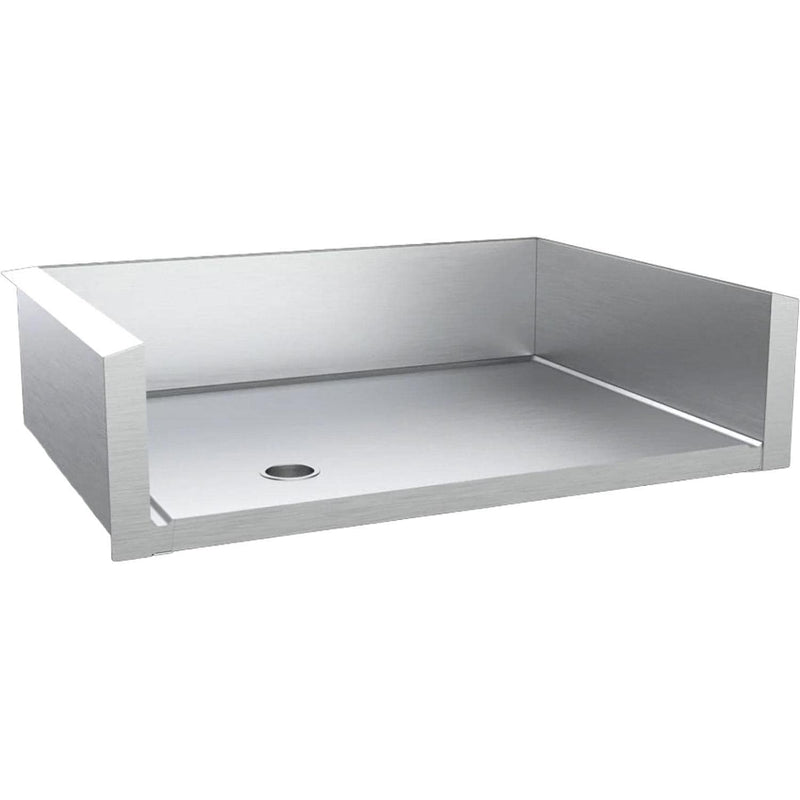

Designed for the compatible Blackstone 36-inch, four-burner drop-in, this insulating jacket includes a countertop flange for a finished edge. A drainage system and utility-routing port help organize the space beneath the griddle.
- Compatible with propane-ready and natural-gas-ready configurations
- Substructure support required
What It Comes With
Insulating jacket and countertop flange/trim kit. Griddle and enclosure are sold separately.
Plan Your Setup

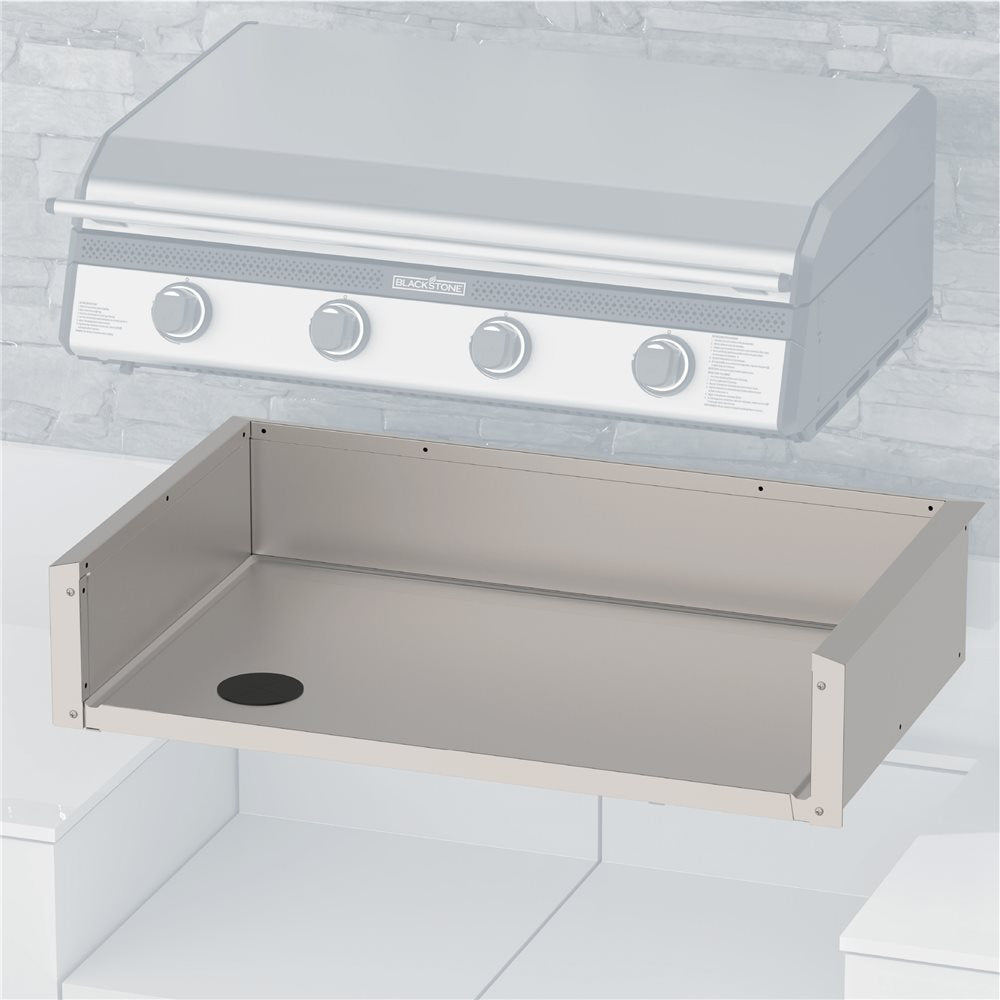

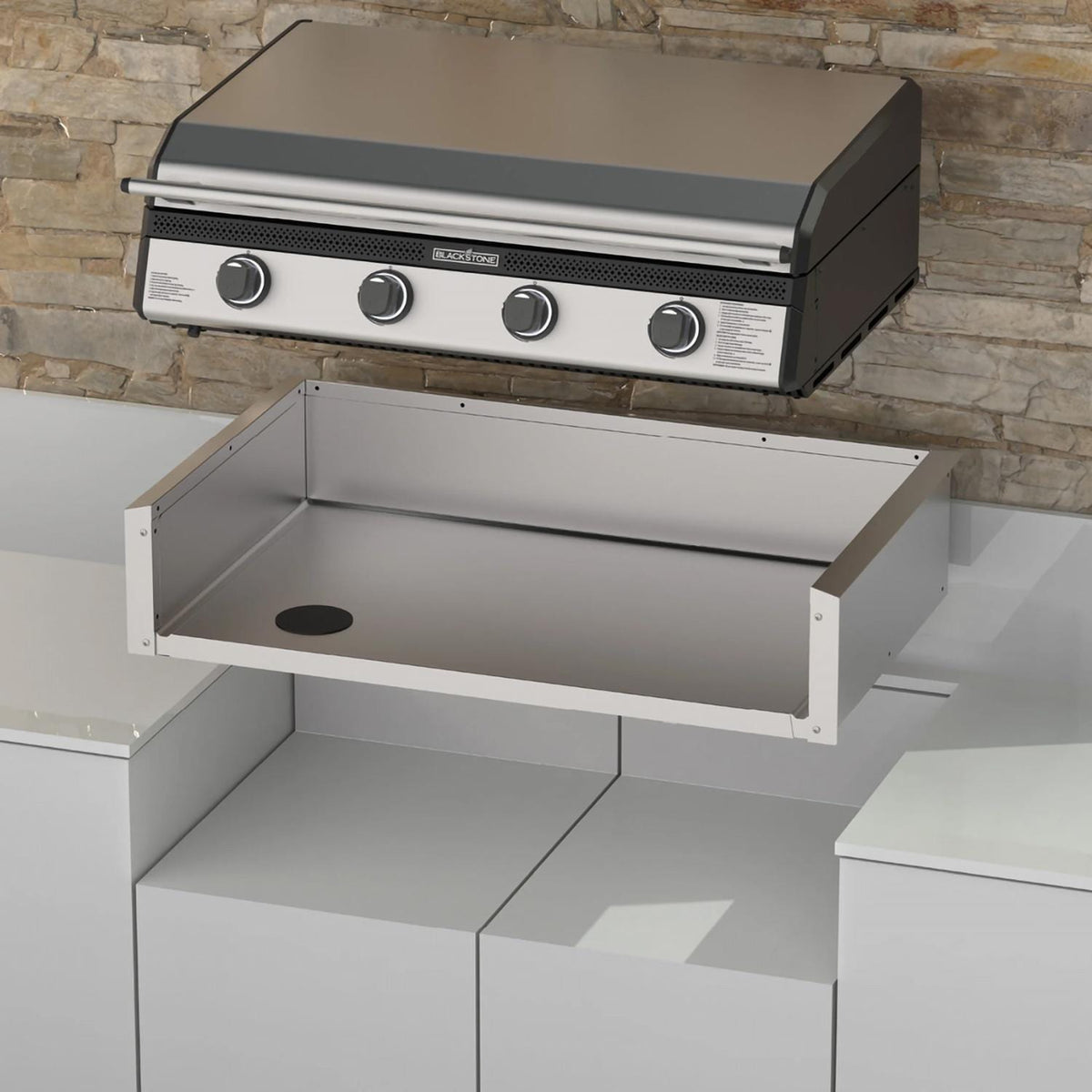

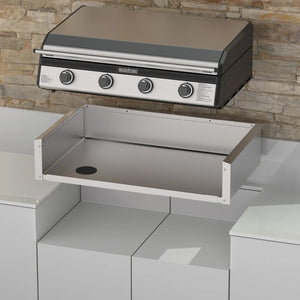

Confirm compatibility with your exact griddle model. Follow the jacket drawing's 43.35-inch width, 26.09-inch depth and 9.16-inch height references, provide the required supporting substructure, and verify clearances before construction.
Useful Before and After You Order
Warranty & coverage
Manufacturer warranty terms and exclusions apply. Contact Smokeforges for help confirming coverage for this model before purchase.
Manuals & documents
Finish Your Blackstone Setup
Add this Blackstone model to your setup when you are ready.
Specifications & Dimensions
| Model | 6430 |
|---|---|
| Brand | Blackstone |
| Minimum cavity width (A) | 43.35 in. |
| Minimum cavity depth (B) | 26.09 in. |
| Cavity height (C) | 9.16 in. |
| Jacket material | 304 stainless steel |
| Minimum utility-hole distance from side (D) | 9.39 in., measured as shown in the drawing. |
| Minimum utility-hole distance from front (E) | 5.05 in., measured as shown in the drawing. |
| Minimum utility-hole diameter (F) | 4.33 in. |
| Installation support | Supporting substructure is required; follow the griddle and jacket manuals. |
Opening-height limit: Blackstone lists 9.16 in. for height C and cautions that a greater height interferes with the hood. Follow the drawing and confirm the exact griddle/jacket combination before construction.
These are the jacket cavity dimensions, not the bare-griddle cutout. In the shared drawing, model 6228 uses the 28-inch width; model 6430 uses the 36-inch width.
Source: Blackstone 6228 / 6430 owner’s manual (PDF), page 4.
