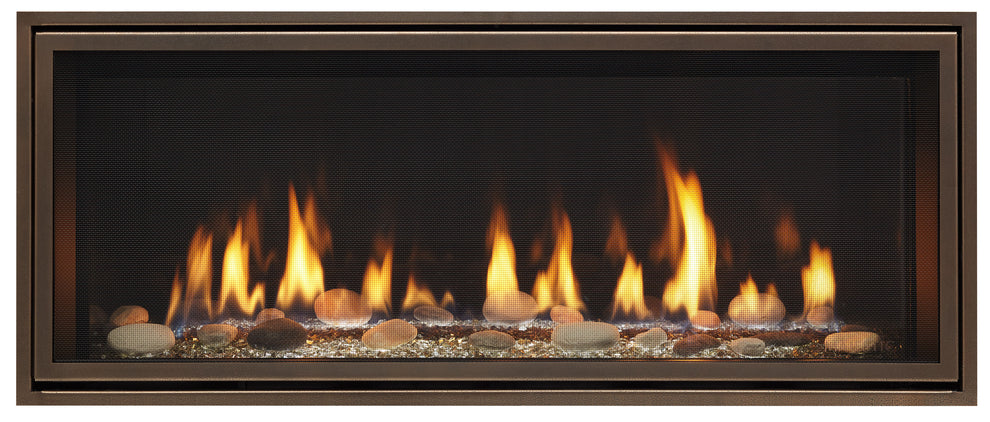

Majestic · Direct Vent Gas Fireplace
A clean-lined focal point, made for your room.
The Echelon II pairs a wide flame presentation with illuminated glass media for an inviting, contemporary living space. Choose the 36-, 48-, 60- or 72-inch model to suit your project, then match the finishing front and decorative options to that exact size.
Performance Highlights
Set the fire to the moment
Adjust the flame and dimmable LED lighting with the included RC400 touchscreen remote. Bronze glass media creates a warm starting point; compatible optional logs, stone and glass let you tailor the firebed to your space.
Fuel Details
These ECHEL36IN-C, ECHEL48IN-C, ECHEL60IN-C and ECHEL72IN-C models are natural-gas, top direct-vent fireplaces with IntelliFire Touch ignition. Propane conversion requires the exact approved kit for the selected model, sold separately.
A compatible decorative front and a correctly designed venting system are required and sold separately. Installation requirements vary by size, vent route and finishing materials. Have a qualified installer confirm the complete configuration and use the current model-specific manual before framing.
Maximum input varies by model and fuel. Compare the SKU-specific ratings in the specifications table below.
Product Details
What It Comes With
- Selected Echelon II Rev C natural-gas fireplace
- RC400 touchscreen remote control
- Bronze glass media
- Dimmable LED lighting and ceramic glass
- Battery-backup provision
Decorative front, venting, optional media, framing, finish materials and installation are not included.
Select your fireplace size above before confirming appliance dimensions, framing measurements and compatible finishing components. The nominal 36-, 48-, 60- and 72-inch labels do not describe the full appliance width or required rough opening.
Manufacturer warranty
The applicable Hearth & Home Technologies limited warranty sets coverage periods, component coverage, eligibility and exclusions. Review the written warranty supplied with the appliance and the linked owner’s manual; contact Smokeforges for the policy that applies to your model.
Project support
Got a project? Let’s plan the right parts.
Share your fireplace model, measurements and finish preferences. Ask about project or bulk pricing when ordering multiple units.
Specifications & Dimensions
| Specification | ECHEL36IN-C | ECHEL48IN-C | ECHEL60IN-C | ECHEL72IN-C |
|---|---|---|---|---|
| BTU input | 30,000 (NG); 27,000 (LP) | 40,000 (NG); 34,000 (LP) | 50,000 (NG); 37,500 (LP) | 58,000 (NG); 45,000 (LP) |
| Viewing area | 35-1/2 x 12-1/2" | 47-1/2 x 12-1/2" | 59-1/2 x 12-1/2" | 71-1/2 x 12-1/2" |
| Overall width | 46-3/16" | 58" | 70" | 82" |
| Overall height | 41-3/4" | 41-3/4" | 47-3/4" | 47-3/4" |
| Overall depth | 17-1/8" | 17-1/8" | 17-1/8" | 17-1/8" |
| Framing width | 48-1/4" | 60-1/4" | 72-1/4" | 84-1/4" |
| Framing height | 42" | 42" | 48" | 48" |
| Framing depth | 18-1/4" | 18-1/4" | 18-1/4" | 18-1/4" |
| UPC | 652174930883 | 652174930920 | 652174930944 | 652174930951 |
Dimensions are in inches unless stated otherwise. Nominal size and viewing area are not the rough opening. Confirm the exact model, revision, vent route, clearances and finishing method in the installation manual before framing. The model-specific installation manual controls where a general guide differs.
Manuals, Spec Sheets & Installation
Use the document for the exact selected model and revision. Shared manuals list the covered model numbers inside the document.
- Majestic Echelon II 36 / 48 / 60 / 72-inch and Echelon II See-Through 36 / 48-inch, Rev C — Installation Manual (PDF)
- Majestic Echelon II 36 / 48 / 60 / 72-inch and Echelon II See-Through 36 / 48-inch, Rev C — Owner’s Manual (PDF)
- Majestic Echelon II 36-inch — Architect Guide and Dimensions (PDF)
- Majestic Echelon II 48-inch — Architect Guide and Dimensions (PDF)
- Majestic Echelon II 60-inch — Architect Guide and Dimensions (PDF)
- Majestic Echelon II 72-inch — Architect Guide and Dimensions (PDF)
