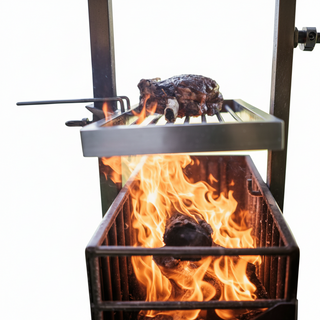

Tagwood BBQ BBQ09SS 304 Stainless Steel Height-Adjustable Secondary Grate
From $400.00
-
Compatible with this product

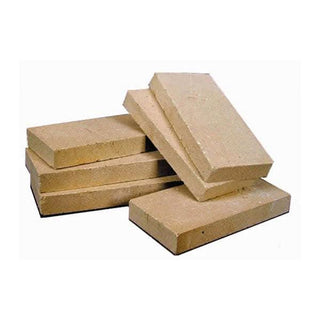

Tagwood BBQ BBQ09SS Argentine Grill Firebrick Set – 60-Piece Replacement Kit
$550.00
-
Compatible with this product

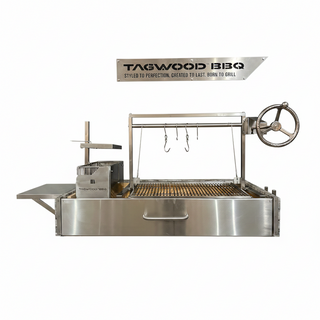

Tagwood BBQ BBQ09SS 304 Stainless Steel Front Door Heat Retention Accessory
From $600.00
Tagwood BBQ BBQ09SS Argentine Santa Maria Grill Insert – Round or V-Shape Grates
Product Documents
Select a file to view or download.
Shop Pay Installments
Choose Shop Pay at checkout to see available installment plans. Eligible purchases may qualify for 4 interest-free payments or a monthly payment plan.
Options depend on the order total and customer eligibility. Rates and terms are shown at checkout before you place the order.
Request a Project Quote
Tell us what you need. A member of our team will contact you with availability, a product and pricing breakdown, and delivery options.
Tagwood BBQ · BBQ09SS

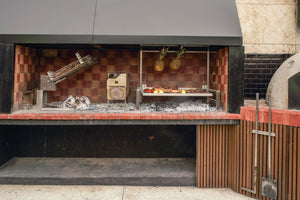

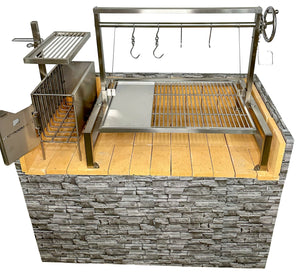

An insert for the grill surround you build

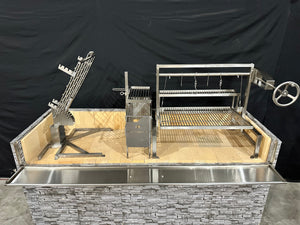

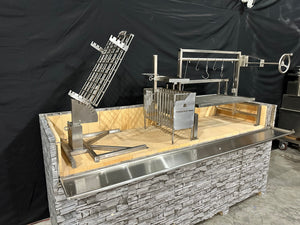

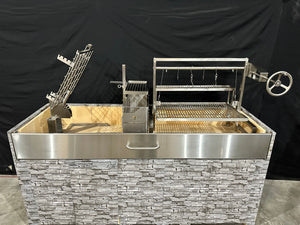

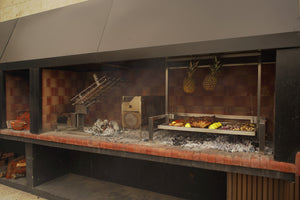

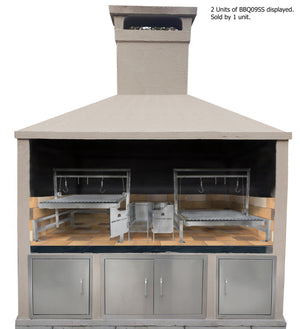

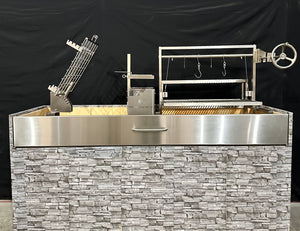

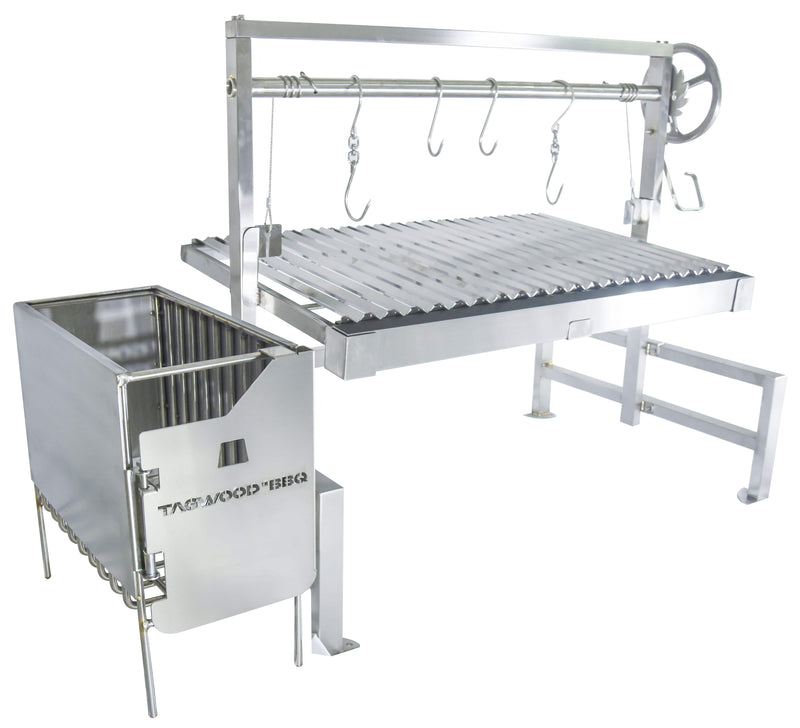

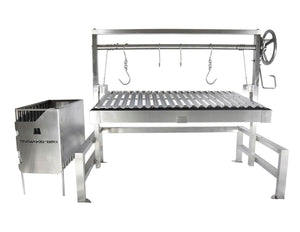

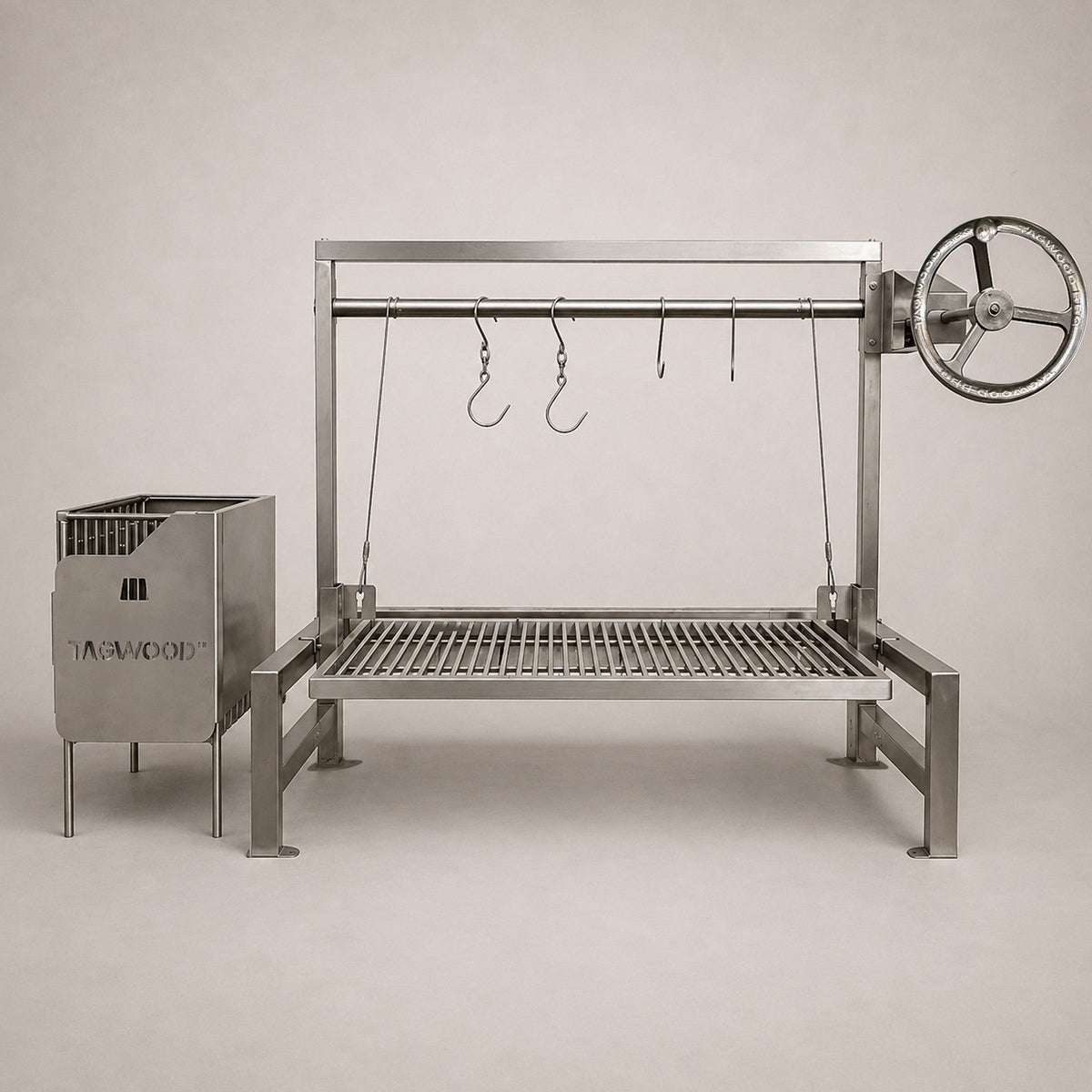

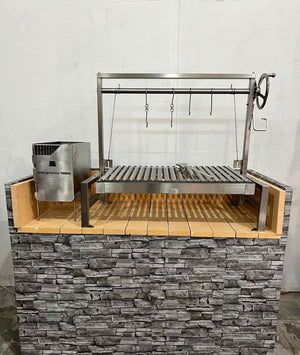

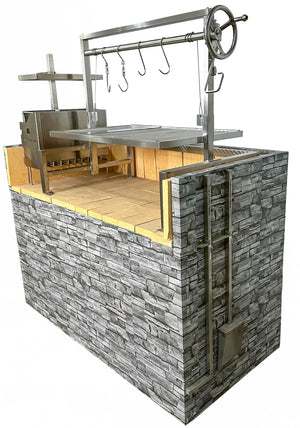

The BBQ09SS is Tagwood's insert-style Santa Maria grill: the brasero, elevation system, grate and hooks in an open 304 stainless steel frame, so your builder can set it into masonry or a custom island. 656 sq. in. of primary cooking area plus a hanging zone.

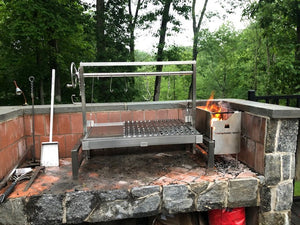

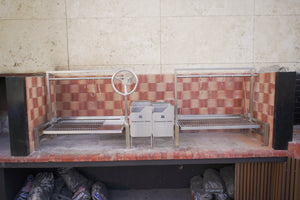

01 · Insert installation

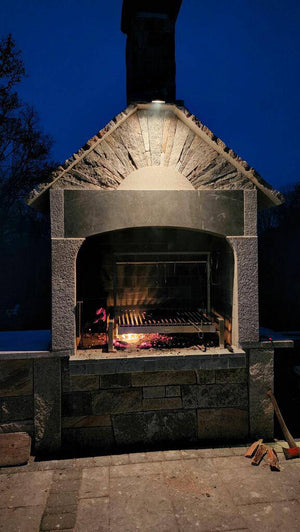

Your stonework, Tagwood's mechanics

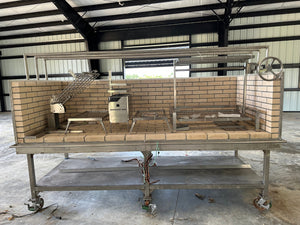

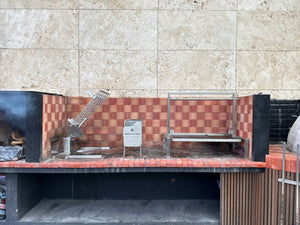

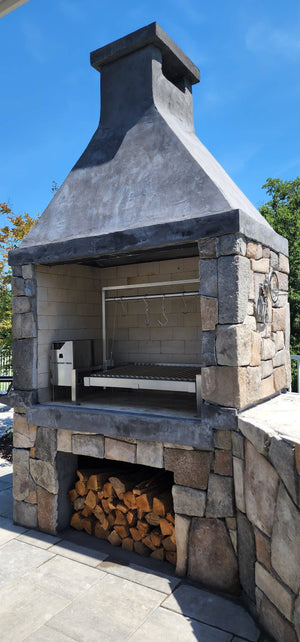

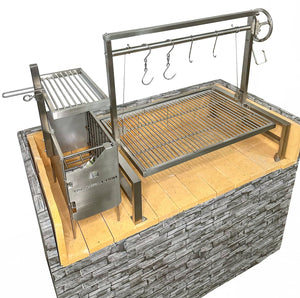

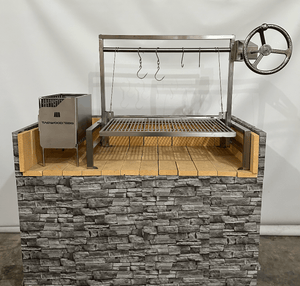

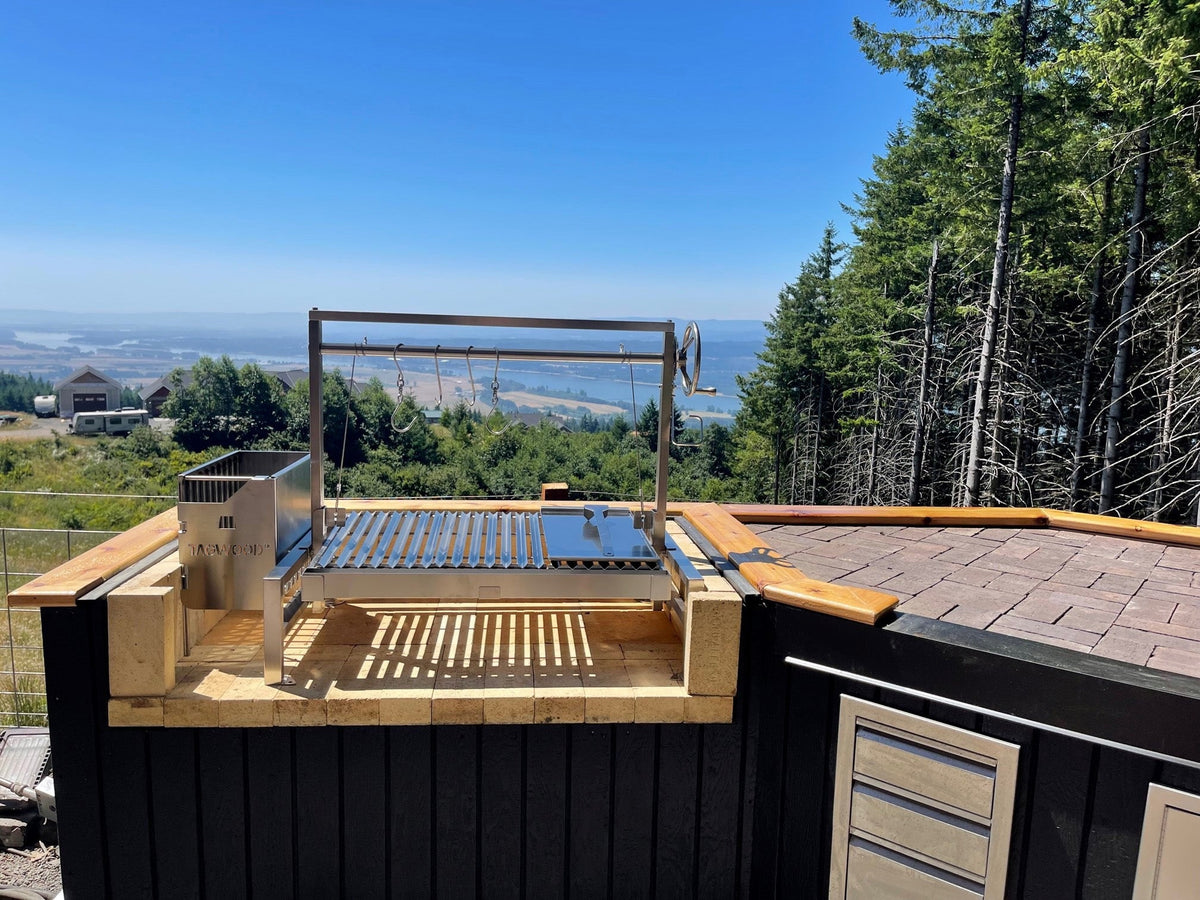

At 117 lb, the insert sets into a wide range of surrounds; plan the opening from the dimensions and installation guide below. Firebricks are sold separately as Tagwood's 60-piece set. The installation guide calls for a level, heat-resistant base lined with firebricks and a centered drain hole for drainage.
02 · Brasero
The fire stays where you put it

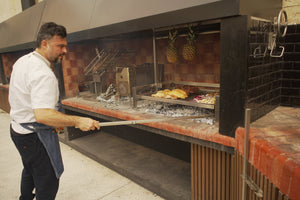

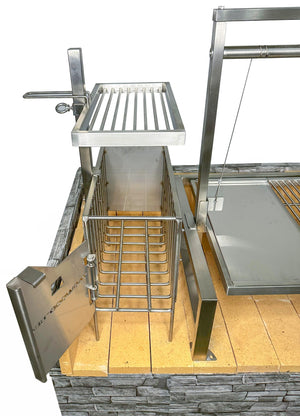

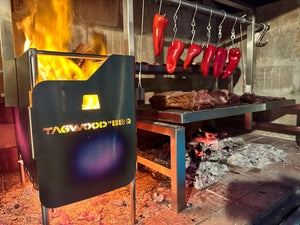

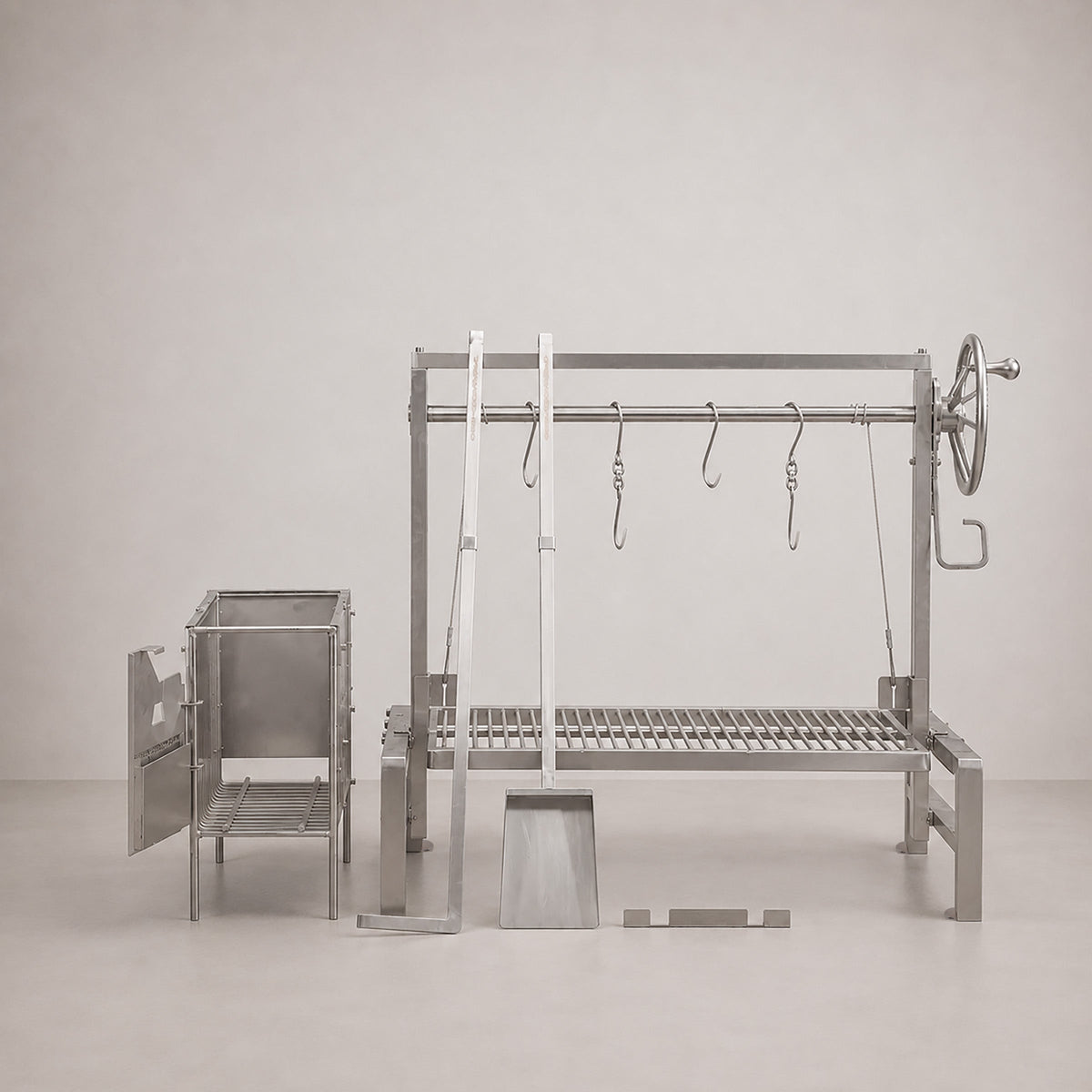

The dedicated brasero lights wood or charcoal quickly and holds the flames beside the cooking area. As the wood burns down, rake the embers under the grate with the included shovel and poker, and keep the brasero fed for steady heat.

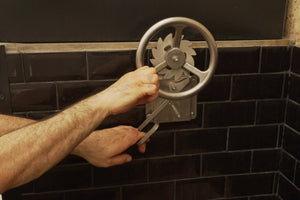

03 · Elevation system
Three ways to place the wheel

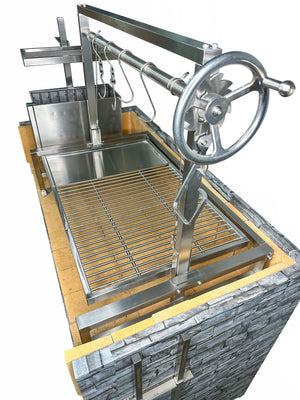

The main grate travels from 1" to 10" above the coals. Because an insert lives inside a wall, where the wheel goes matters more here than on any other Tagwood grill.

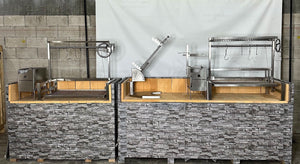

Elevation system: Right side vs Frontal
Both layouts raise and lower the same grate through the same range. Tagwood does not publish a separate clearance figure for the wheel; its installation guide asks you to allow sufficient clearance for crank wheel movement, so plan open space where the wheel sits and follow the BBQ09SS installation guide.
04 · Round or V-shape grates
Pick your grate
Round main grates give you 33.5" x 22" of cooking area and work with the interchangeable griddle. V-shape grates give you 33.5" x 20.5", with angled bars that drain grease to the collector box; they do not take the griddle. Both grill beautifully, so choose by how you like to cook.
05 · Hanging zone
Made for the long asado

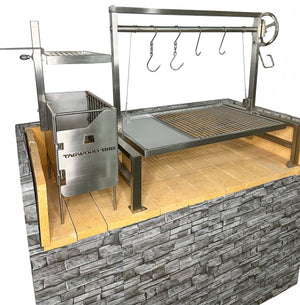

S-shaped meat hooks above the grate add a hanging zone for chorizo, ribs and peppers, so the slow cuts and the quick ones share the same fire.
Plan your outdoor cooking space
Need help choosing the right setup? Ask Smokeforges for a quote.
Product details
Specifications
- Total Grilling Area
- 656 Sq. in.
- Round Main Grate
- 33.5” x 22”
- V-Shape Main Grate
- 33.5” x 20.5”
- Weight
- 117 lb
- Dimensions
- 33.75”H x 53”W x 25”D
- Max Elevation
- 10”
- Min Elevation
- 1”
- Fuel
- Hardwood and charcoal
- Configuration
- Insert; firebricks sold separately
- Manufacturer warranty
- 3-year limited; manufacturer terms apply
- Construction
- 304 stainless steel
- Main grate
- Round Main Grates, V-shape main grates (excludes griddle)
- Elevation system
- Right side (Pre-order), Extended right side (30 cm), Frontal elevation
Product documents
Specification sheet — inchesInstallation guideInstallation guide — only with optional BBQ94SS clamp grillBBQ09SS User ManualBBQ09SS Front Elevation Manual
