The Outdoor Plus · Atlas
A globe of water crowned with fire

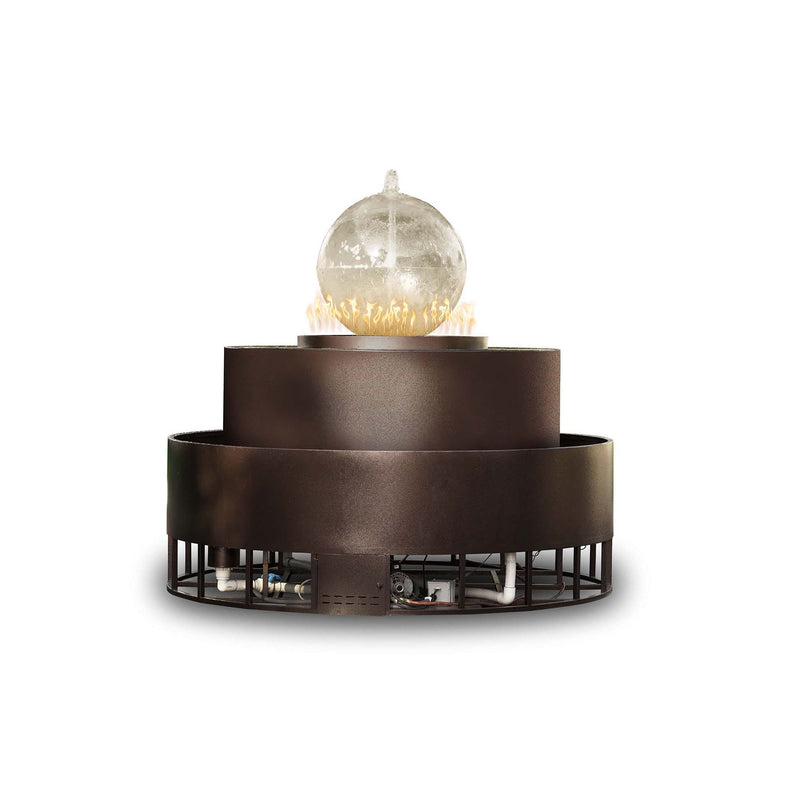

The 89-inch Atlas is a self-contained fire and water fountain, made in the USA. Water spills from an acrylic globe into a powder-coated basin while a ring of fire burns around it, with LED lights for the evening.
01 · Water feature
Self-contained, with its own pump and tank
Everything the water needs comes in the unit: a water tank, a 24-hour circulation pump, LED lights and a drain valve. TOP adds an auto-fill feature that regulates the water level, so the fountain keeps running without constant topping up.
The globe is a durable, weather-resistant acrylic, 30 inches across on TOP’s spec sheet.
02 · Materials & fire
Powder-coated base, stainless burner
The base is high-quality metal in your choice of seven powder-coat colors. The fire pan and burner come with lava rock, and TOP’s spec sheet lists a total of 65,000 to 125,000 BTU through a 1/2-inch NPT female gas inlet.
Gas & Ignition Options
Two choices shape how this feature is installed and how you use it every night: the fuel it burns and the way it lights. Here is what each option on this page means.
Fuel: Propane (LP) or Natural Gas (NG)
Supply pressure: TOP’s manuals list 6–7 in. W.C. for natural gas and 8–11 in. W.C. for propane, so have your installer confirm the supply before the feature goes in.
Ignition
Key valve: TOP notes the key valve must be installed separately from the Atlas, since it cannot be mounted on the bowl. Plan its location with your installer.
Installation dimensions and utilities
| Overall dimension A | 89 in. |
|---|---|
| Published body/base dimension B | 31 in. |
| Overall height C | 76 in. |
| Globe | 30 in. clear acrylic globe shown on current drawing |
| Gas inlet | 1/2 in. NPT female |
| Fuel | Natural gas or liquid propane |
| Ignition | Low-voltage electronic ignition only |
| Published total BTU range | 65,000–125,000 BTU on the current specification drawing |
Manufacturer-listed system components
- Atlas bowl / fountain body
- Fire pan and burner
- Whistle-free gas hose and gas orifice
- Mounting bracket
- Water tank
- LED lights
- Circulation pump
- Drain valve
- Lava rock
Finish + gas
- Java, Pewter, Silver Vein, Black, Copper Vein, Gray or White powder coat
- Natural gas or liquid propane
- Low-voltage electronic ignition is standard to the current Atlas configuration
- Outdoor use only
Self-contained and component coverage
The current The Outdoor Plus warranty lists self-contained units at 1 year residential / 6 months commercial, with the same 1 year residential / 6 months commercial period for LED lighting and qualifying electronics, gas valves and pilot assemblies. Stainless-steel/aluminum pans carry 5-year residential coverage and burner rings/bars carry lifetime coverage. Current written terms and exclusions apply.
Select finish and fuel above only after confirming the 89-inch footprint, gas service, electrical requirements, drainage/level surface and access for future service.
